Mobile LIN and CAN-Bus simulator with display and keyboard

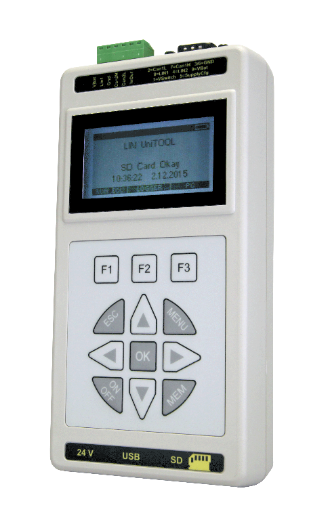

The HARP-5 is a PC independent handheld device for simulation of LIN and CAN buses. With the powerful battery and the integrated 12V generator, you can read out location-independent LIN and CAN bus signals and log the data. In addition, simulations and error analyses can be saved in macros, which can then be individually selected and executed by the device.

The delivery of a HARP-5 system includes the following components:
  • HARP-5 device
  • 16 GB SDHC card (already installed in the unit)
  • Set of 6 rechargeable batteries (already installed in the unit)
  • Charger (24 V, 1.25 A), with shockproof connection for the EU
  • A 6-pole plug with screw connection (MC 1.5/ 6-ST-3.81)
  • Download licence for LINWorks suite (includes LINWorks PC software, USB drivers, sample files and documentation)

Price: 1.869 € net plus shipping for EU / outside EU: please request quotation from us

Request offer
HARP-5: Mobile LIN- and CAN-Bus simulator with display and keyboard

Performance overview

Application areas

  • Mobile and PC-independent simulation tool with own LIN bus power supply
  • Can be used for ECU testing, automatic test systems and fault analysis directly at the customer's premises
  • Easy demonstration of LIN and CAN products for the distribution
  • Read out bus signals in real time, change signal values and start and stop macros via the keyboard
  • Hand-held remote control for units with LIN or CAN bus interface
  • Data logging function possible at 100% bus workload

Technical function

  • Supports all LIN bus versions from 1.2, to 2.2
  • 12-digit membrane keypad with 3 freely programmable function keys
  • Removable 16GB SD card for SDF files and log data
  • Display with 128x64 resolution for presenting the freely configurable menus
  • CAN high-speed, CAN low-speed and 2.LIN interface can be enabled via activation options
  • Integrated 12 V generator (150 mA) for supplying LIN nodes
  • Battery operation with a runtime of up to 10 hours

Compatibility and system requirements

  • Windows 7/8/10/11 (32/64 Bit)
  • Interface to the DLL library for:
    Windows (x86 & x64), PC based Linux (x86 & x64), ARM based Linux (x86 & x64)
  • Native programming for C/C++ as well as via wrappers in .NET languages, Python, VB6 and LabView are possible
  • PC-SD card adapter required to transfer the SDF files and log files
  • .

Direct Downloads

arrow down

Getting started guide

(2.3MiB) 2021-11-19

arrow down

HARP-5 Datasheet

(1.3MiB) 2022-11-15

More helpful files available with login:

  • HARP-5 User Manual
  • LinWorks-PCSoftware_CD
  • Firmware update package
