BABY-LIN-RM-III

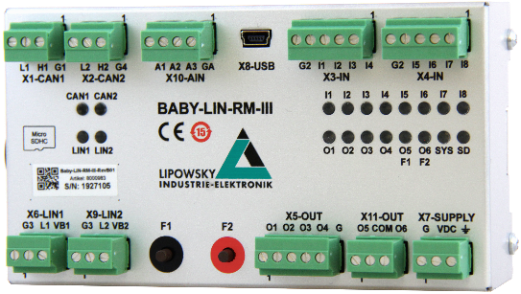

The Baby-LIN-RM-III is a LIN and CAN bus combination device for easy connection to PLC-based EOL systems. With the digital inputs and outputs and the extension to CAN-FD support, all interfaces are provided. In conjunction with our LINWorks software, Marcos can be programmed, with which the Baby-LIN-RM-III serves countless task areas even in stand-alone mode.

The delivery of a Baby-LIN-RM-III system includes the following components:
  • Baby-LIN-RM-III device
  • USB 2.0 cabel, 1,5m, typ A to typ B-mini
  • 6 3-pole plug with screw connection (MCVR 1,5/ 3-ST-3,81)
  • 1 4-pole plug with screw connection (MCVR 1,5/ 4-ST-3,81)
  • 3 5-pole plugs with screw connection (MCVR 1,5/ 5-ST-3,81)
  • Download licence for LINWorks suite (includes LINWorks PC software, USB drivers, sample files and documentation)

Price: 1.020 € plus VAT and shipping (customers within the EU)

Request offer
Baby-Lin-II

Performance overview

Application areas

  • Can be used for PLC coupling, restbus simulation, control unit test, automatic test systems and EOL applications
  • Extension and modernisation of test benches to new control units with LIN or CAN bus interface
  • Can be used as an autonomous LIN/CAN gateway
  • LIN or CAN bus control via digital inputs configurable via LDF/DBC
  • Stand-alone mode with freely programmable command sequences possible
  • Data logging function possible at 100% bus workload

Technical function

  • Supports LIN bus versions 1.2, 1.3, 2.0, 2.1 and 2.2, as well as CAN-FD, CAN-High-Speed and CAN-Low-Speed buses
  • Provides 8 input and 6 output 24V signals with 3 analogue inputs
  • 2 freely programmable buttons integrated
  • Compact module for top-hat rail mounting. 76 x 133 x 36mm (H x W x D)
  • Galvanically isolated LIN and CAN bus interface
  • MicroSD card up to 32 GB
  • On-board voltages from 8 - 28V

Compatibility and system requirements

  • Windows XP/Vista
  • Windows 7/8/10 (32/64 Bit)
  • Interface to the DLL library for:
    Windows (x86 & x64), PC based Linux (x86 & x64), ARM based Linux (x86 & x64)
  • Native programming for C/C++ as well as via wrappers in .NET languages, Python, VB6 and LabView are possible

Direct Downloads

Baby-LIN-RM-III Datasheet

(536.7KiB) 2021-09-01

Getting started guide

(804.6KiB) 2021-09-15

More helpful files available with login:

  • Baby-LIN-RM-III User Manual
  • LinWorks-PCSoftware_CD
  • Firmware update package
See the downloads
