LIN- and CAN-Bus simulator with RS-232/Ethernet interface

The Baby-LIN-MB-II is a LIN and CAN simulation system with RS-232 and Ethernet interface. This allows you to expand your PLC with network protocols and remote maintenance functions for an upgrade to the industry 4.0. With the ability to switch between multiple LIN bus configurations and the MIF module extensions, the Baby-LIN-MB-II can be customised for many applications.

The delivery of a Baby-LIN-MB-II system includes the following components:
  • Baby-LIN-MB-II device
  • A 3-pole plug with screw connection (MC 1,5/ 3-ST-3,81)
  • Download licence for LINWorks suite (includes LINWorks PC software, USB drivers, sample files and documentation)

Price: 1.821 € net plus shipping for EU / outside EU: please request quotation from us

Request offer

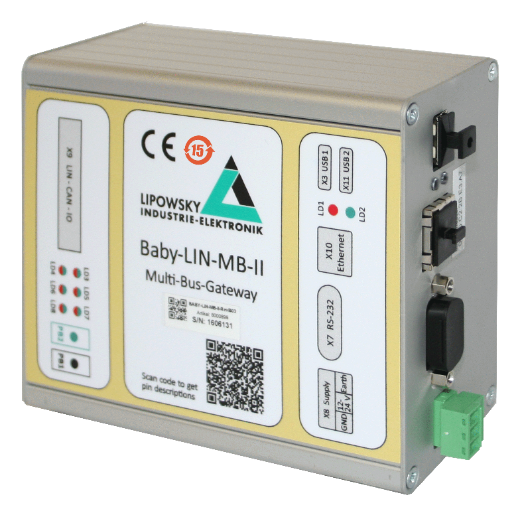

Baby-LIN-MB-II: LIN- and CAN-Bus simulator with RS-232/Ethernet interface

Performance overview

Application areas

  • Application of network protocols and remote maintenance functions for Industry 4.0
  • Control of different interfaces via multi SDF capability and 6 LIN bus configurations
  • Can be used for PLC coupling, restbus simulation, control unit test, automatic test systems and EOL applications
  • Enables gateway functions between LIN and CAN buses
  • Stand-alone mode with freely programmable command sequences possible
  • Data logging function possible at 100% bus workload
  • Remote maintenance for Industry 4.0 through integrated website, SDF upload, log file download, parameter change and firmware update, all possible from anywhere

Technical function

  • Supports LIN bus versions 1.2, 1.3, 2.0, 2.1 and 2.2, as well as CAN high-speed, RS-232 and LAN interface
  • LIN interface with 2 MIF-LIN-02 modules and a total of 6 LIN channels
  • Input and output with 24V signal for synchronisation purposes
  • Integrated UPS with 15 seconds bridging time
  • Galvanically isolated LIN and CAN bus interface
  • MicroSD card up to 32 GB
  • On-board voltages from 8 - 28V

Compatibility and system requirements

  • Windows 7/8/10/11 (32/64 Bit)
  • Interface to the DLL library for:
    Windows (x86 & x64), PC based Linux (x86 & x64), ARM based Linux (x86 & x64)
  • Native programming for C/C++ as well as via wrappers in .NET languages, Python, VB6 and LabView are possible

Direct Downloads

arrow down

Getting started guide

(2.8MiB) 2021-11-19

arrow down

Baby-LIN-MB-II Datasheet

(1.2MiB) 2022-11-15

More helpful files available with login:

  • Baby-LIN-MB-II User Manual
  • LinWorks-PCSoftware_CD
  • Baby-LIN-MB-II Systemupdate
See the downloads
